Selecting an appropriate TBM disc cutter configuration is essential for maintaining excavation efficiency, controlling cutter consumption and reducing unplanned interventions. Poorly matched cutter components may contribute to accelerated wear, chipping, bearing or seal failure, irregular rotation and unstable excavation performance.
Cutter selection should not be based on uniaxial compressive strength alone. Rock abrasivity, mineral composition, rock mass structure, groundwater pressure, anticipated impact loads, cutter position, operating parameters and the existing cutterhead interface should be evaluated together. These factors influence the required balance of cutter ring wear resistance and toughness, bearing capacity, sealing performance and assembly reliability.
• Rock strength: commonly evaluated by uniaxial compressive strength, or UCS.
• Rock abrasivity: commonly assessed through CAI and mineral composition.
• Rock mass condition: including joints, fractures and RQD.
• Groundwater conditions: water and slurry can affect wear, lubrication and sealing.
• Impact and load conditions: fractured or mixed ground may create unstable and repeated impact loads.
• TBM configuration and cutter position: cutter size, installation position and cutterhead design affect loading, wear behavior and replacement strategy.
• Operating parameters: cutterhead thrust, rotational speed, penetration per revolution and operating stability influence cutter loading, temperature, wear and failure behavior.
The following conditions are discussed separately for clarity. In practice, rock mass conditions, groundwater and operating environment may overlap within the same tunnel section.
Hard and abrasive rock formations typically generate high contact stresses and continuous wear on the cutter ring during excavation. The main risks include accelerated cutter ring wear, high cutter loads and an increased probability of fatigue or abnormal damage when operating parameters are not properly matched to the ground conditions. Cutter selection should therefore focus on strong wear resistance, sufficient bearing capacity, reliable sealing performance and a suitable cutter ring profile. However, maximum hardness is not always the best solution, as an excessively hard cutter ring may become more vulnerable to brittle cracking under impact loads. Material hardness and toughness should be balanced according to rock abrasivity, rock mass integrity and expected operating conditions.

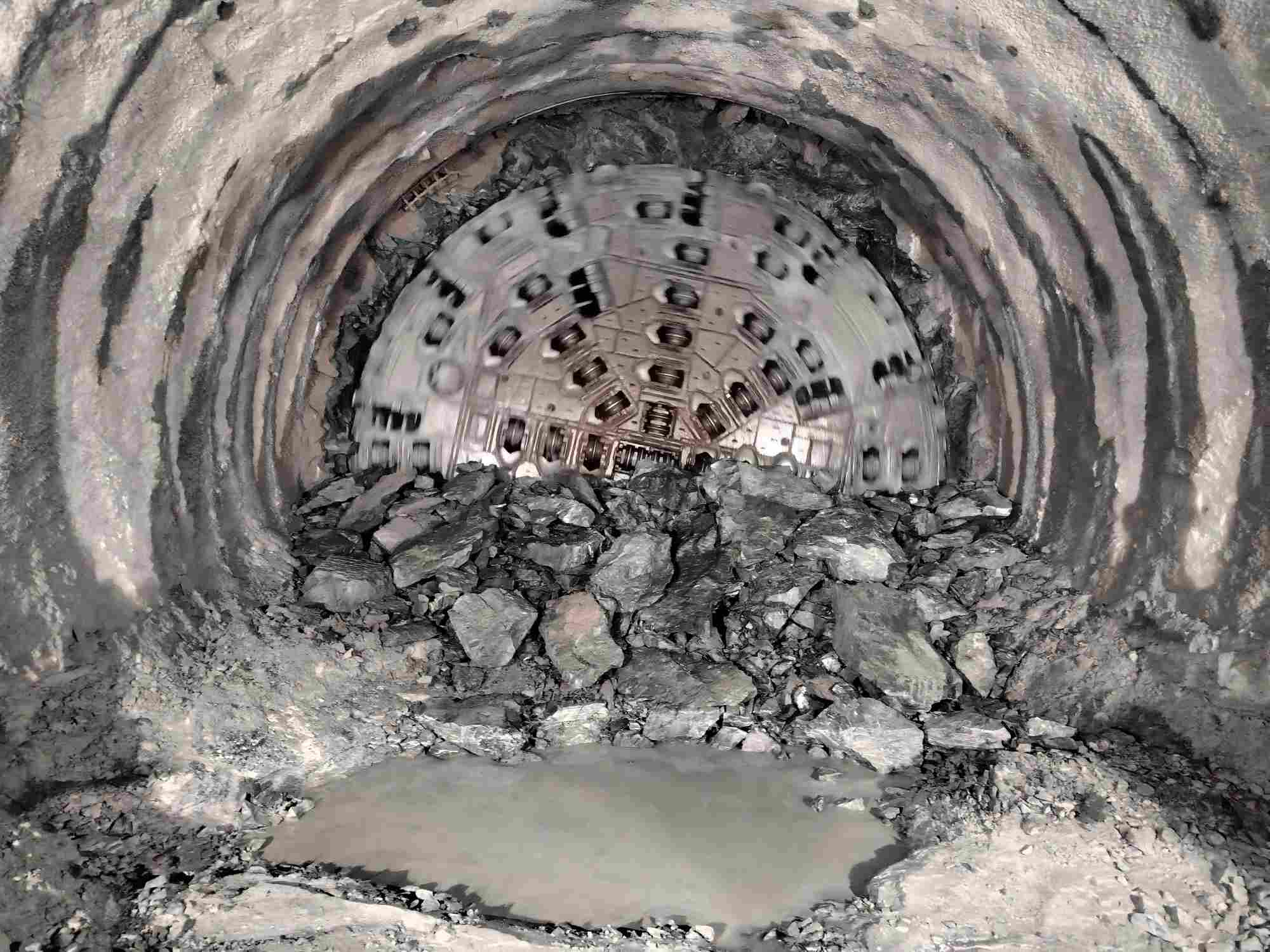

Fractured and jointed rock masses create discontinuous cutter–rock contact. Depending on joint spacing, orientation, persistence and block size, the cutter may experience fluctuating loads, vibration, impact and localized overloading.For this type of ground, cutter selection should prioritize toughness, impact resistance, assembly reliability and protection of the bearing and sealing system. A balanced combination of toughness and wear resistance is generally more important than pursuing maximum hardness alone. Attention should also be paid to cutter fixation, bearing condition and abnormal wear, since loose or unstable rock blocks may create sudden load changes during excavation.
Mixed ground may occur either as alternating geological sections along the alignment or as materials of significantly different strength within the same tunnel face. The latter may produce particularly uneven cutter loading and irregular wear across the cutterhead. Cutter selection should therefore emphasize adaptability and overall system reliability rather than optimizing a single component for one specific rock type. Cutter ring material, bearing load capacity, sealing performance and cutter arrangement should be evaluated together. Because ground conditions may change significantly along the tunnel alignment, selection should account for the most demanding credible conditions while maintaining acceptable performance across the expected range of ground conditions.
Water-bearing or slurry-contaminated conditions may expose the cutter assembly to groundwater pressure, slurry, fine particles and abrasive contaminants. The main risks are lubricant loss, seal damage, bearing contamination, increased friction and eventual cutter rotation failure. In these conditions, cutter selection should place particular emphasis on floating seal reliability, lubricant retention and protection of the internal bearing system. Sealing performance should not be considered separately from bearing quality and assembly accuracy, because failure of one part may quickly affect the entire cutter system. More frequent inspection may also be required where water pressure, slurry concentration or contamination levels are high.
Where high hydrostatic pressure is expected, additional sealing or pressure-compensation requirements should be confirmed with the TBM manufacturer and cutter supplier.
Cutter position on the cutterhead affects cutting trajectory, load distribution and wear behavior. Center cutters follow shorter cutting paths but may operate under concentrated loading near the cutterhead center. Face cutters perform most of the general rock-breaking work, while gauge cutters follow longer trajectories and are also subjected to lateral forces associated with profile excavation. Depending on cutterhead design and ground conditions, these differences may result in different wear rates and failure patterns. Therefore, cutter position should be considered when evaluating expected service life and replacement strategy.
Cutter type should also be matched to the cutterhead layout, installation dimensions and project requirements. Single-disc, twin-disc and center-cutter assemblies must match the original cutterhead layout, installation interface and loading requirements. They should not be treated as interchangeable options based on geology alone.
· TBM type and cutterhead configuration
· Cutter diameter, type and installation position
· Cutter assembly drawings, interface dimensions or an existing cutter sample
· Geological report or available rock data
· UCS, CAI and relevant mineral composition
· RQD, joint spacing, orientation and fracture conditions
· Groundwater pressure and slurry conditions, where applicable
· Expected drive length and cutter-access conditions
· Existing cutter wear or failure records
· Cutterhead rotational speed
· Target or recorded penetration per revolution
· Normal cutter load or total cutterhead thrust
· Available operating records
Ground Condition | Main Risks | Selection Priority |
Hard and abrasive rock | Accelerated ring wear and high cutter loads | Wear resistance, adequate toughness and load capacity |
Fractured and jointed rock | Impact, vibration and fluctuating loads | Toughness, impact resistance and assembly reliability |
Mixed ground | Uneven loading and irregular wear | Balanced, adaptable system performance |
Water-bearing or slurry-contaminated conditions | Seal damage, contamination and lubricant loss | Sealing reliability and bearing protection |
This table provides general guidance only. Final cutter selection should be based on geological data, TBM configuration and project operating conditions.
TBM disc cutter selection is a system-matching process rather than a simple comparison of rock strength or cutter ring hardness. Geological conditions, rock mass structure, groundwater, cutter position, operating parameters and cutterhead interface should be considered together when determining the required cutter ring, bearing, sealing and assembly characteristics.
Preliminary recommendations may be developed from geological reports and cutter drawings, but final configuration should also consider project-specific operating requirements and available wear or failure records. Where ground conditions vary significantly, cutter performance should be reviewed during excavation so that inspection intervals, operating parameters and replacement strategies can be adjusted accordingly.
