Our TBM cutting tool range includes Single Disc Cutters, Double Disc Cutters, Center Twin Disc Cutters and Soft-Ground Cutting Tools for different cutterhead positions and ground conditions.

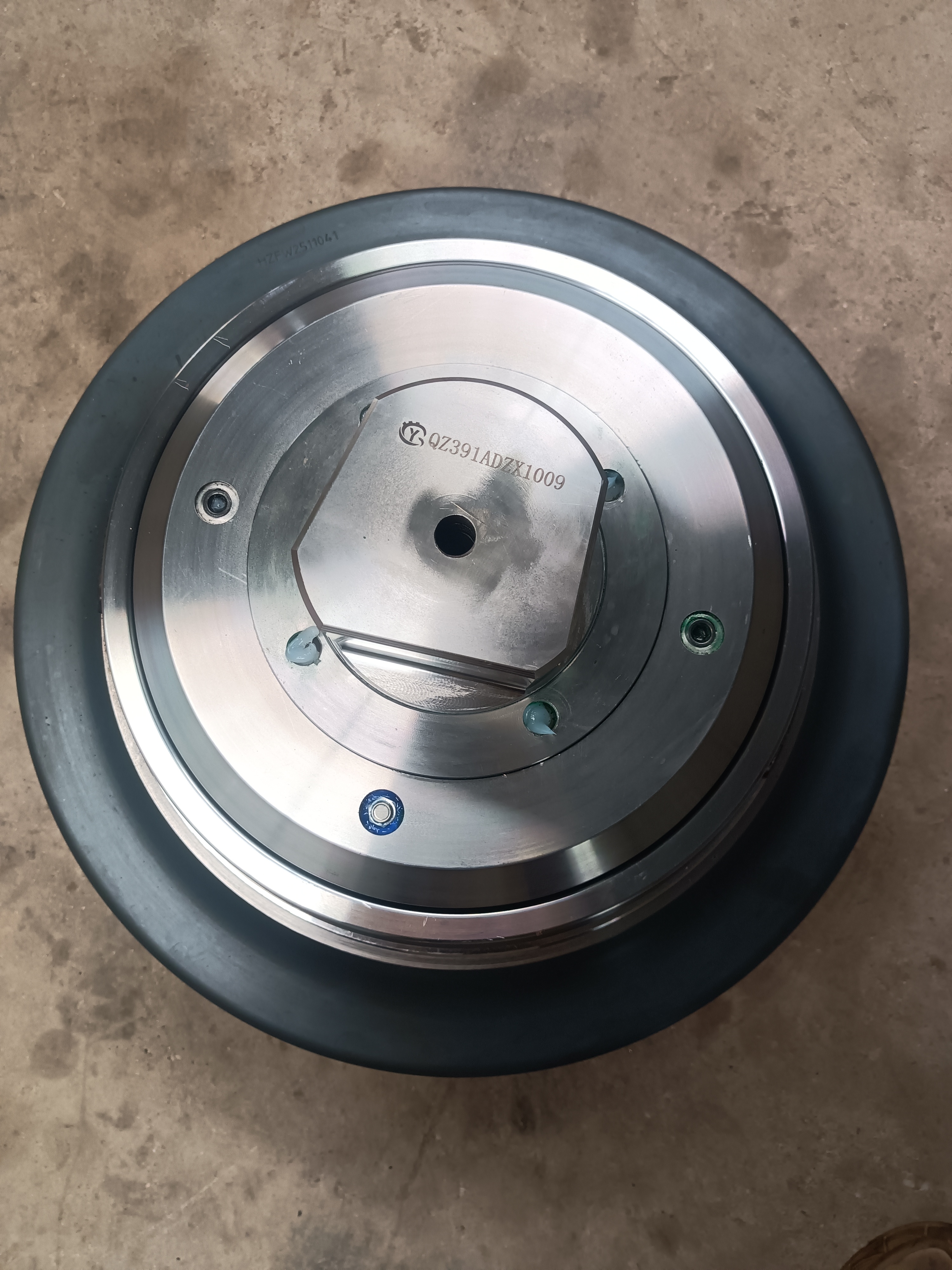

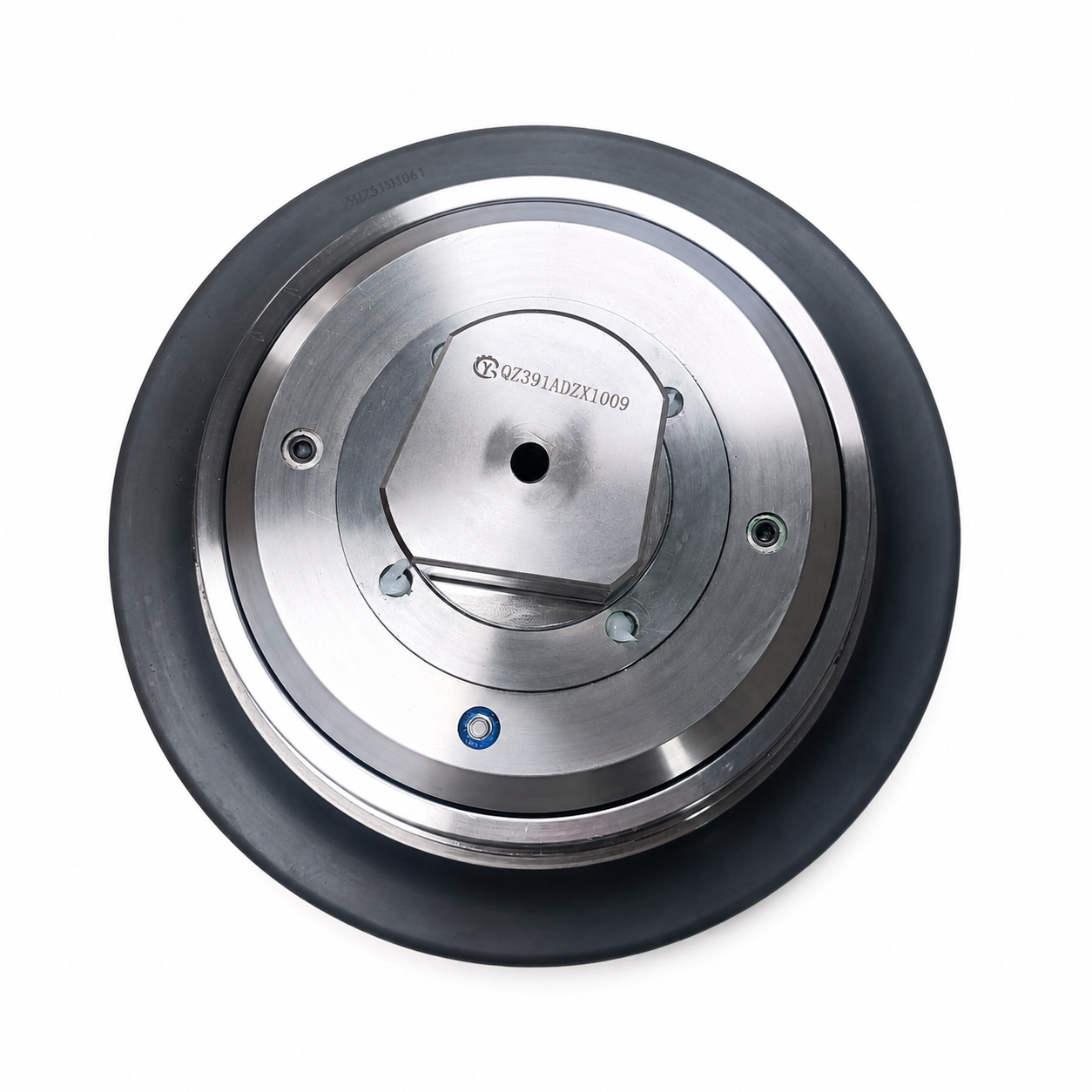

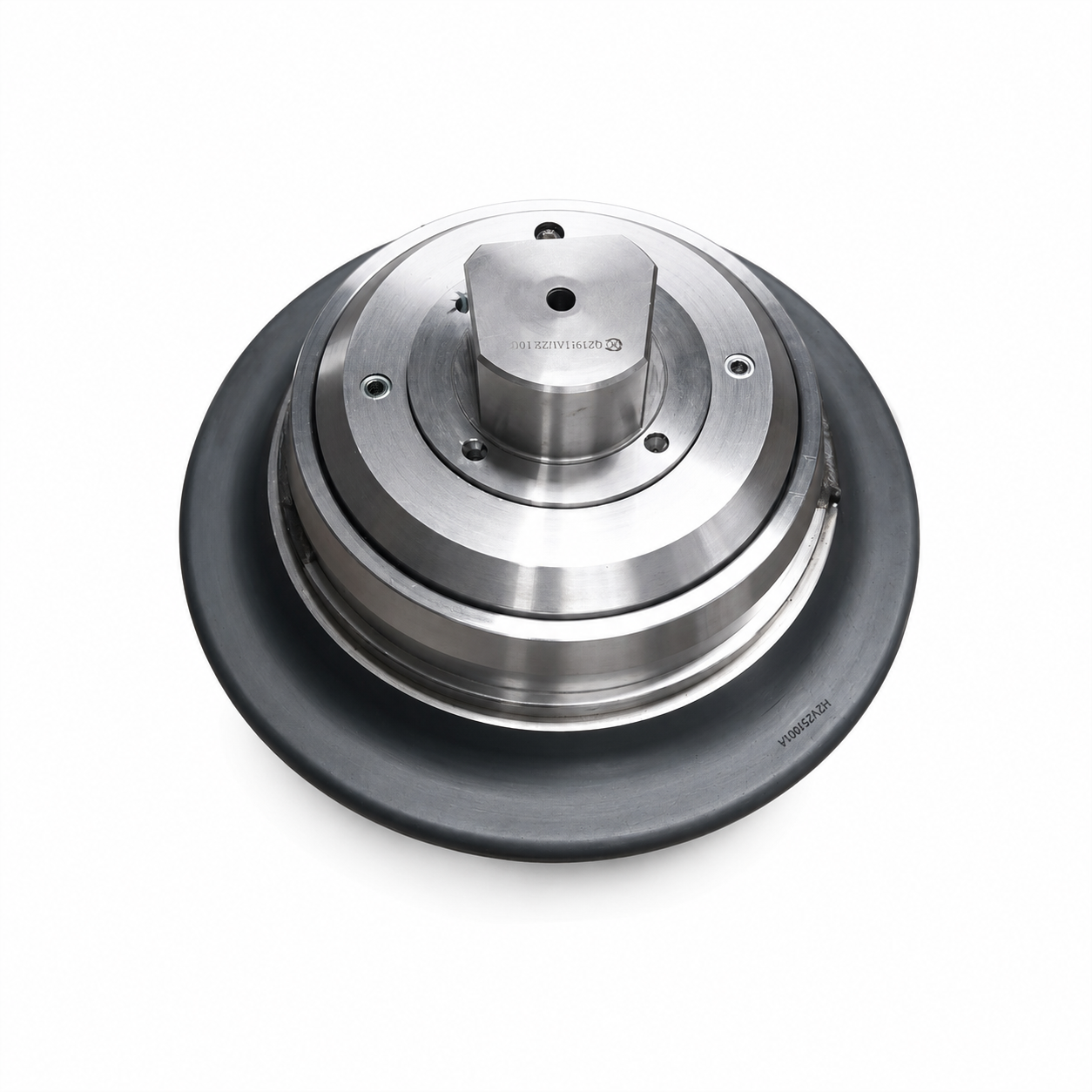

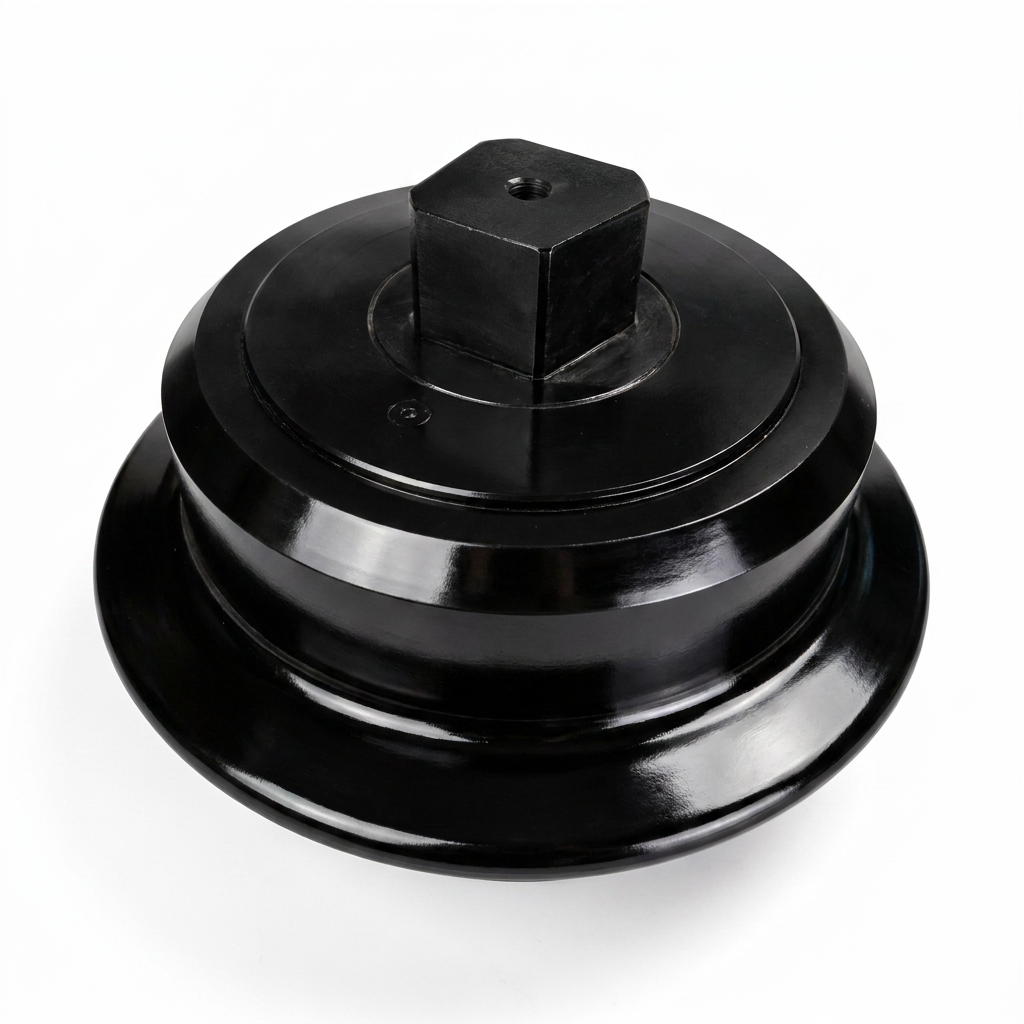

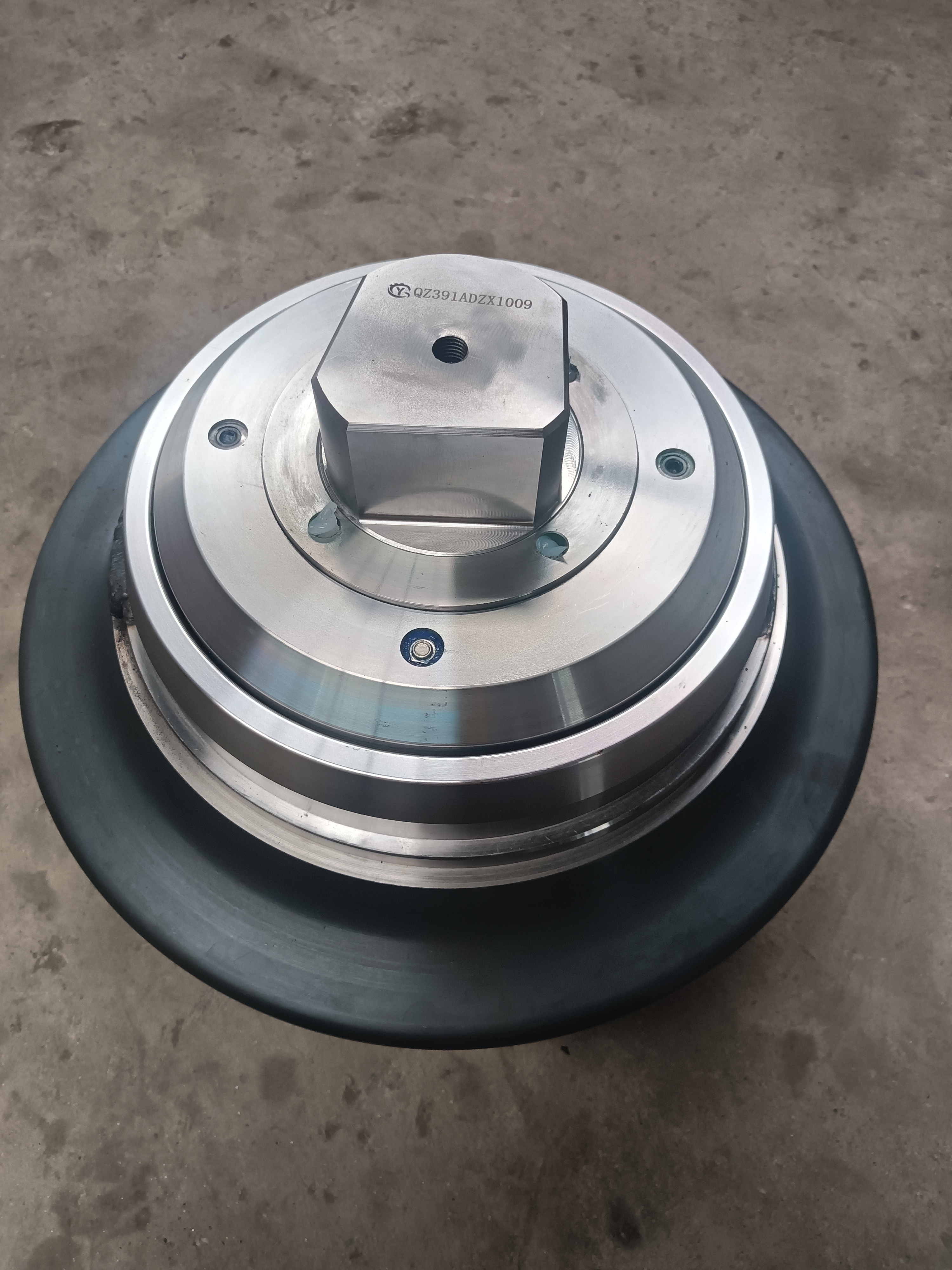

Single disc cutters are primarily used for hard-rock excavation and are installed across the cutterhead according to the required cutting layout. Available cutter sizes and configurations can be selected or customized based on the cutterhead structure, installation dimensions, operating conditions and customer drawings.

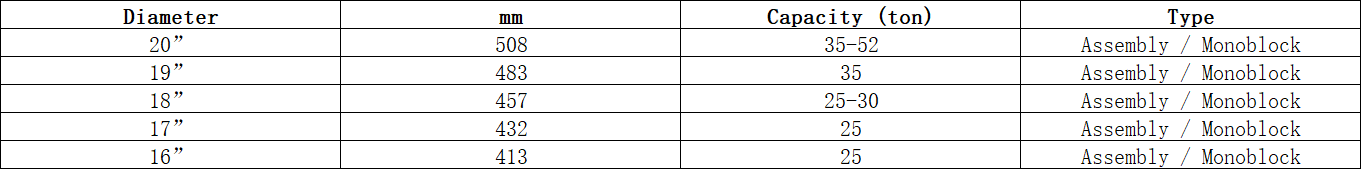

Technical Specifications

Note: Dimensions shown are based on available standard or reference configurations. Final cutter dimensions, mounting details and component configurations are subject to technical review and drawing confirmation. Additional sizes and customized configurations are available upon request.

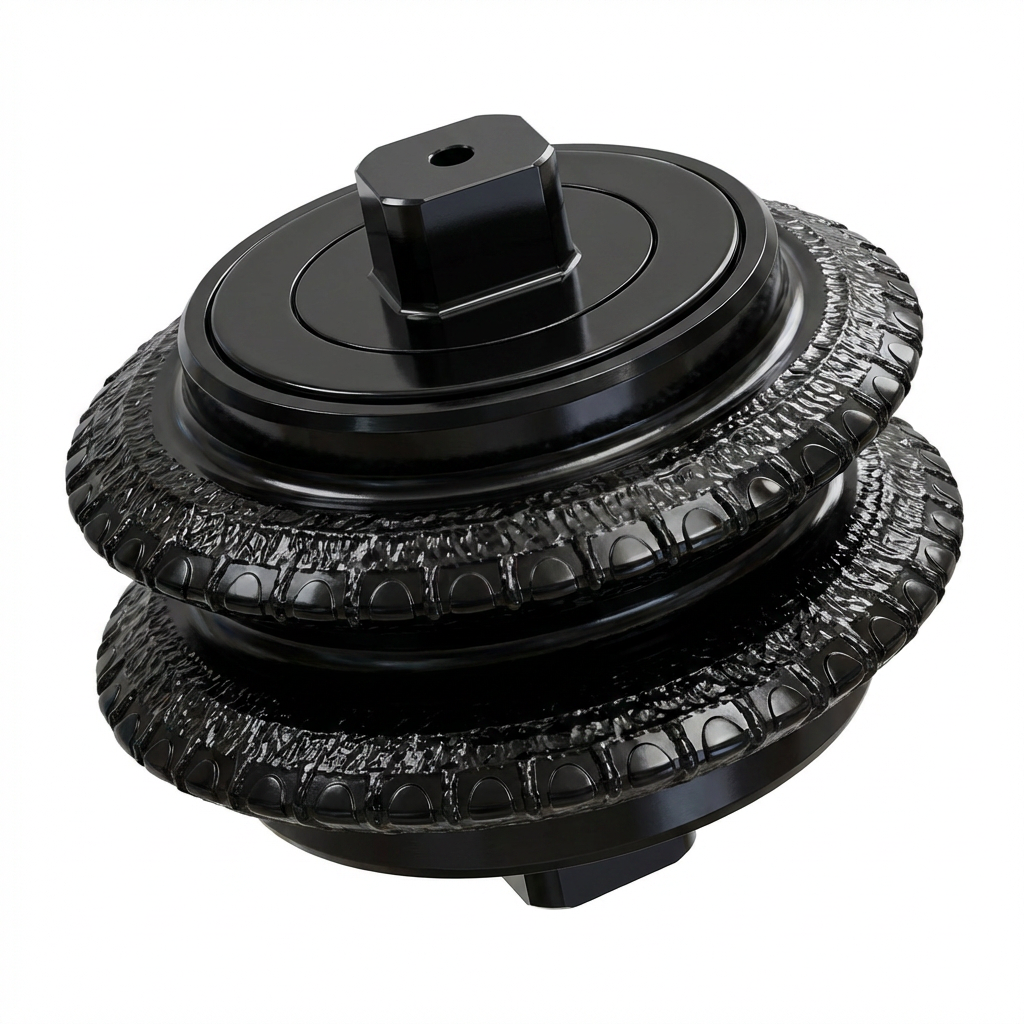

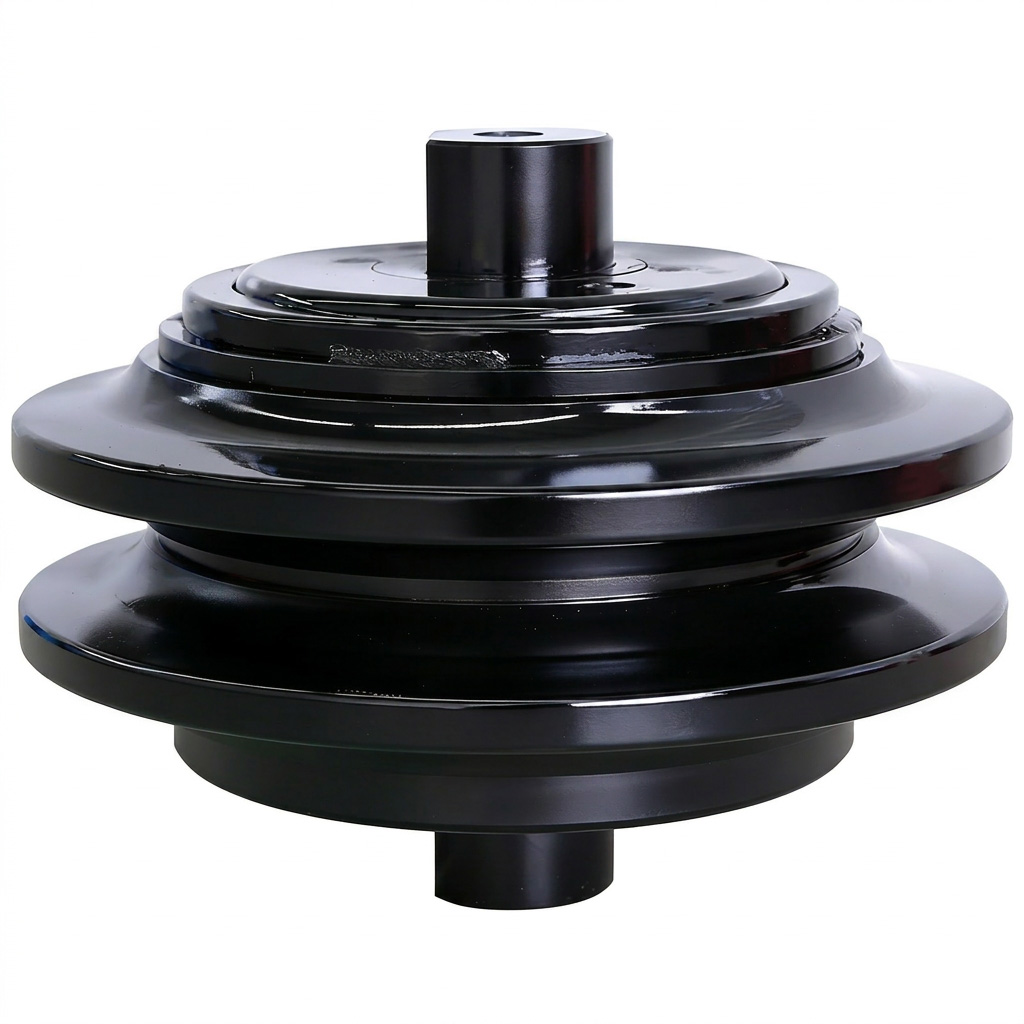

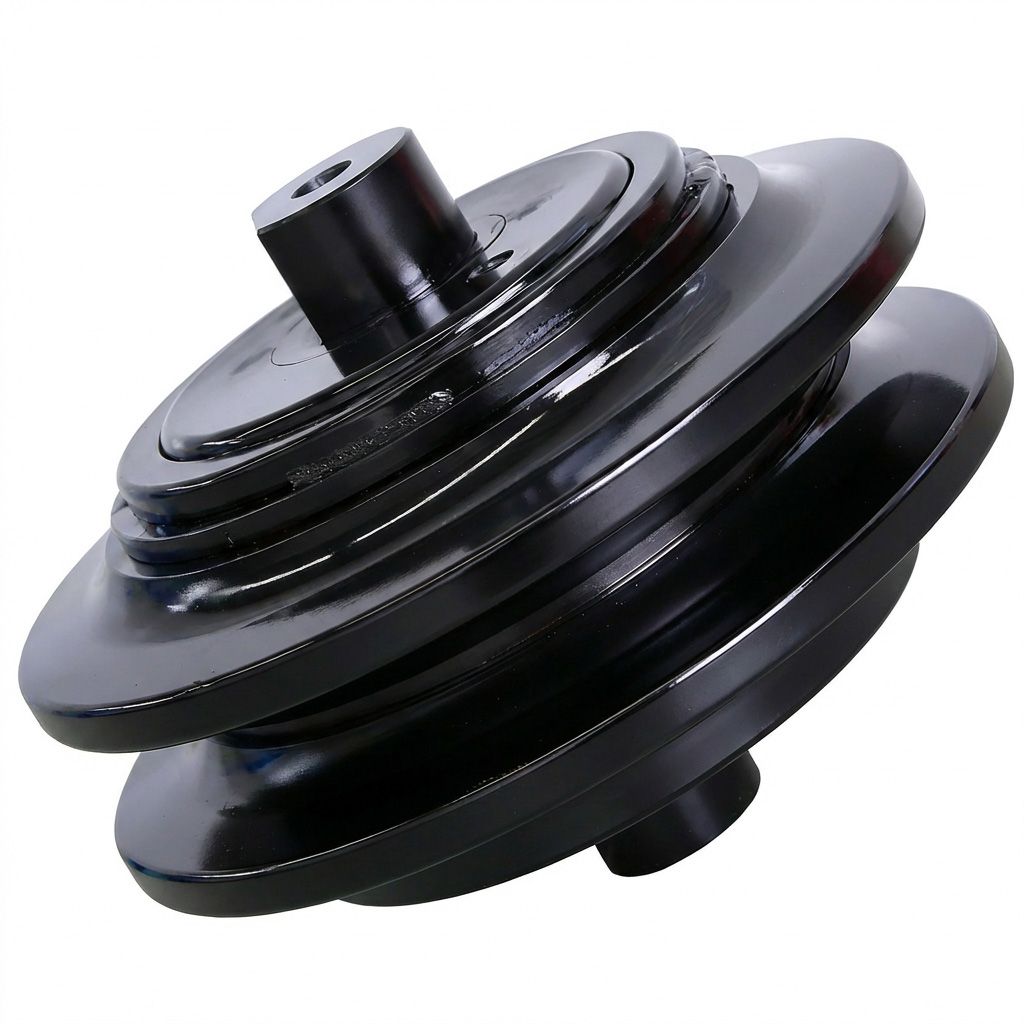

Qingyue supplies double disc cutters for hard-rock and mixed-ground TBMs. The dual-ring assembly is configured according to the cutterhead layout, cutter position, mounting dimensions and operating load requirements.

Cutter diameter, cutter ring spacing, overall width, ring material, bearing and sealing configuration can be matched to customer drawings and existing cutter specifications. H13 and DC53 cutter ring options are available, with Timken bearings available upon request. Key dimensions and assembly requirements are reviewed before production to support replacement and project-specific spare-parts supply.

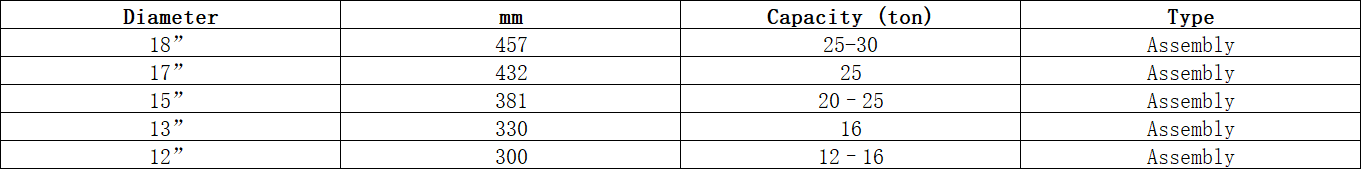

Technical Specifications

Note: Dimensions shown are based on available standard or reference configurations. Final cutter dimensions, mounting details and component configurations are subject to technical review and drawing confirmation. Additional sizes and customized configurations are available upon request.

Ring C–C: Center-to-center distance between the two cutter rings.

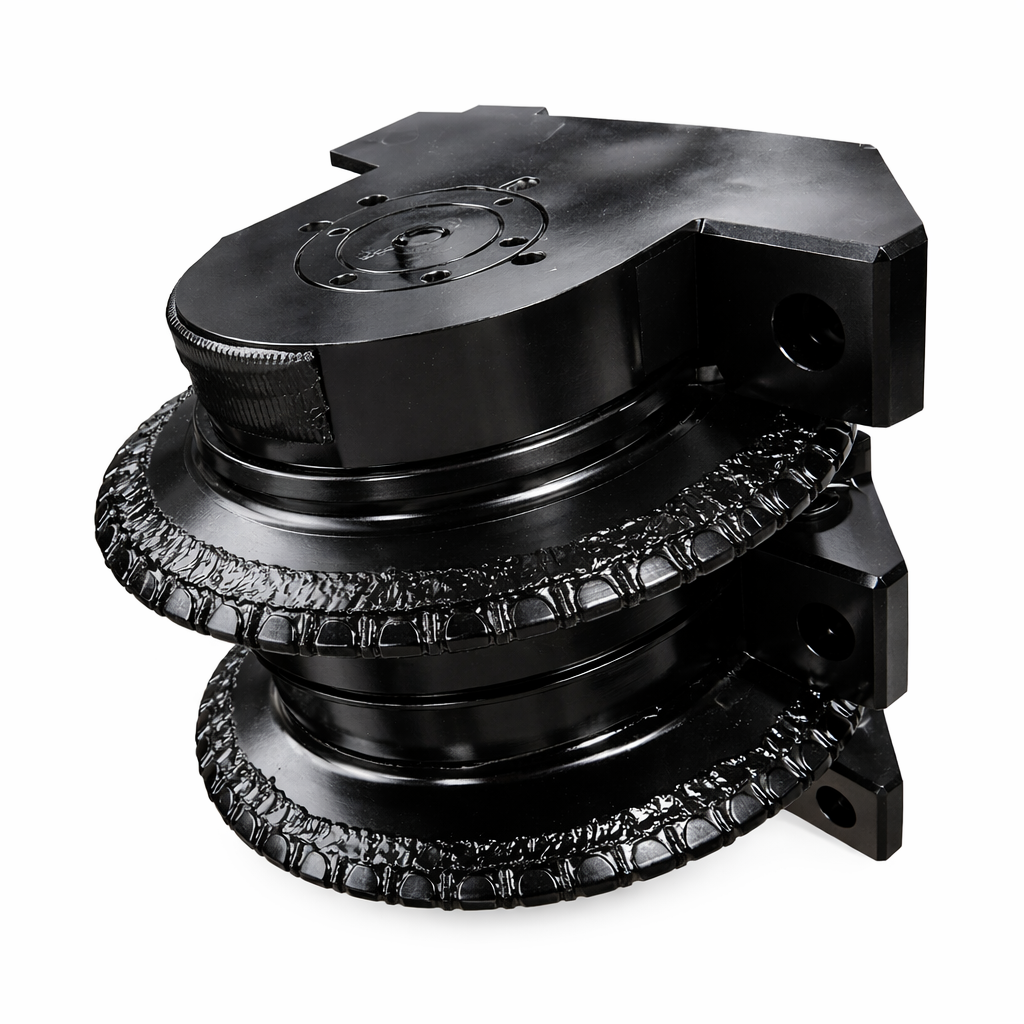

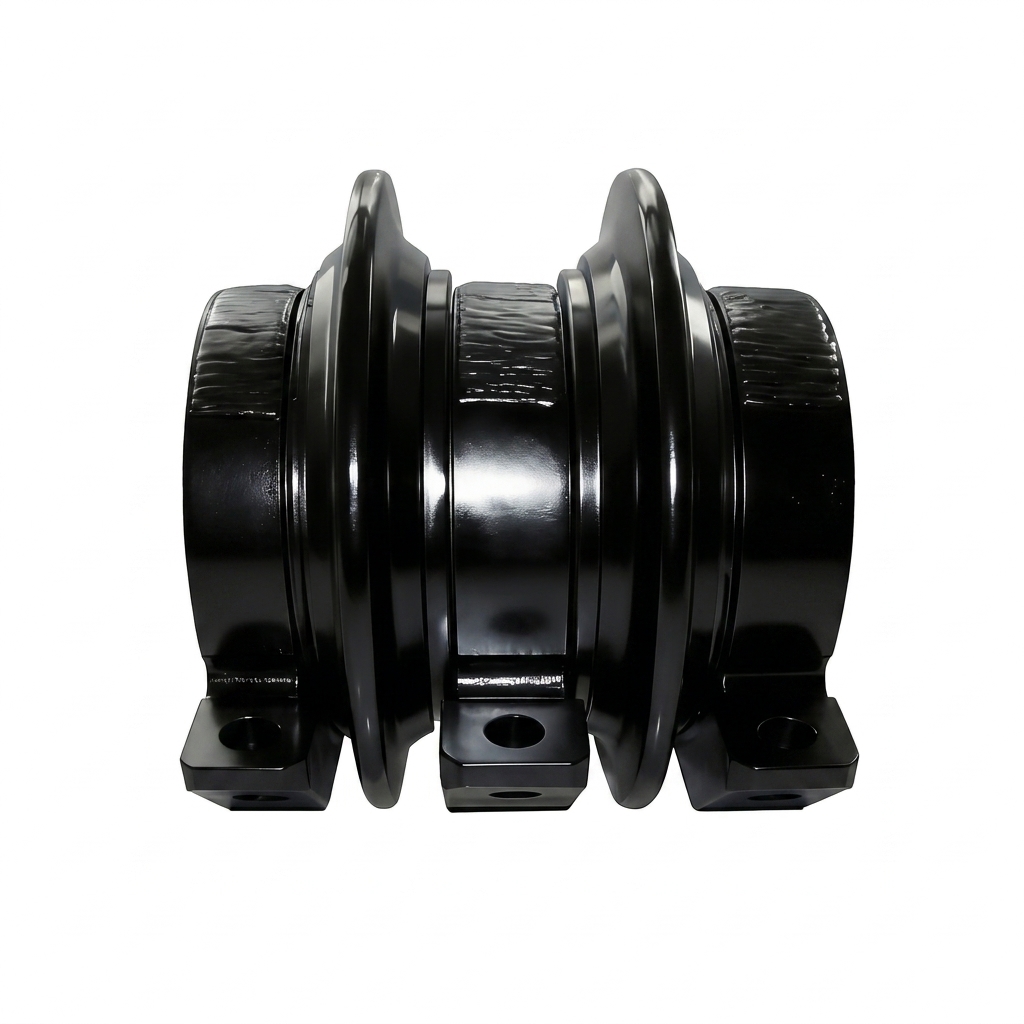

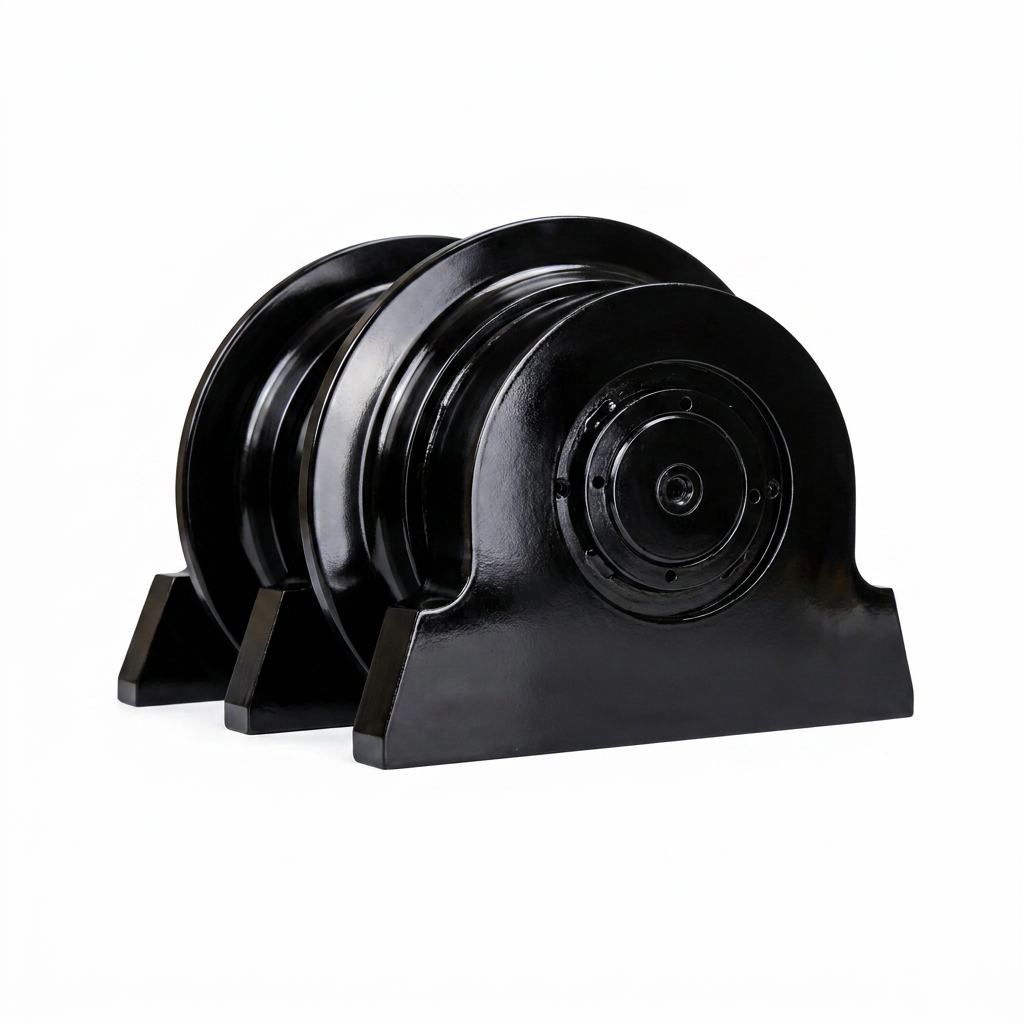

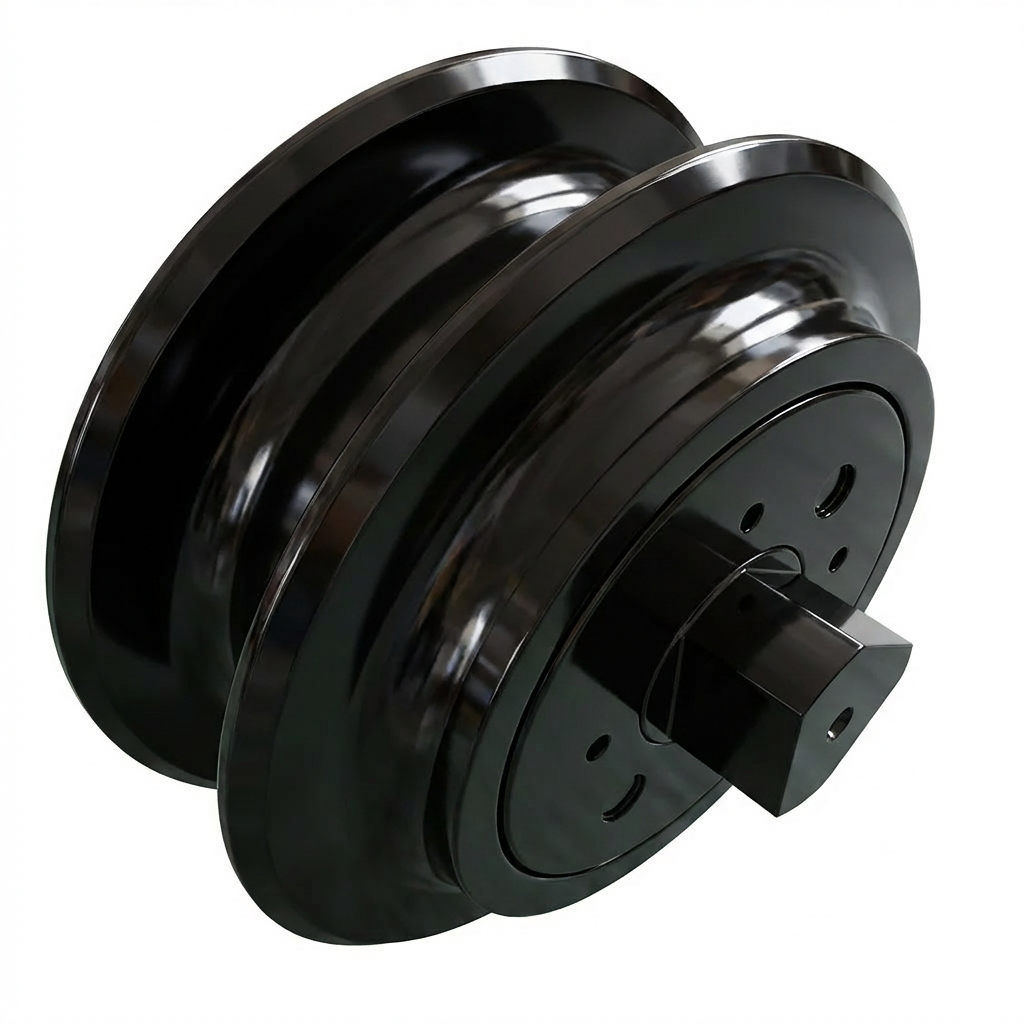

Qingyue supplies center twin disc cutters for installation in the central area of hard-rock and mixed-ground TBM cutterheads. The twin-ring structure is configured to meet the specific cutting-track arrangement, limited installation space and mounting requirements of the cutterhead center.

Cutter diameter, rated load, cutter ring spacing, overall width, bearing and sealing configuration can be matched to customer drawings and existing cutter specifications. H13 and DC53 cutter ring options are available, with Timken bearings available upon request. Key dimensions and assembly requirements are reviewed before production to support accurate replacement and project-specific supply.

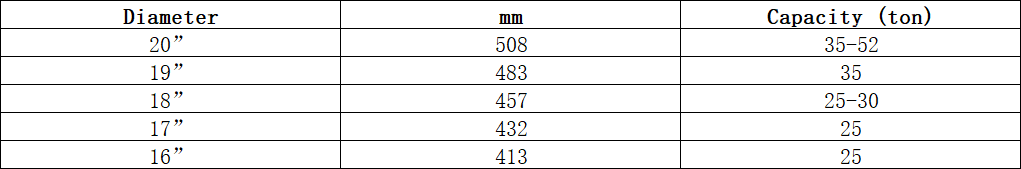

Technical Specifications

Note: Dimensions shown are based on available standard or reference configurations. Final cutter dimensions, mounting details and component configurations are subject to technical review and drawing confirmation. Additional sizes and customized configurations are available upon request.

Disc Cutter Configuration & Supply Capabilities

· Cutter rings in H13 or DC53 materials

· Narrow or wide ring profiles available

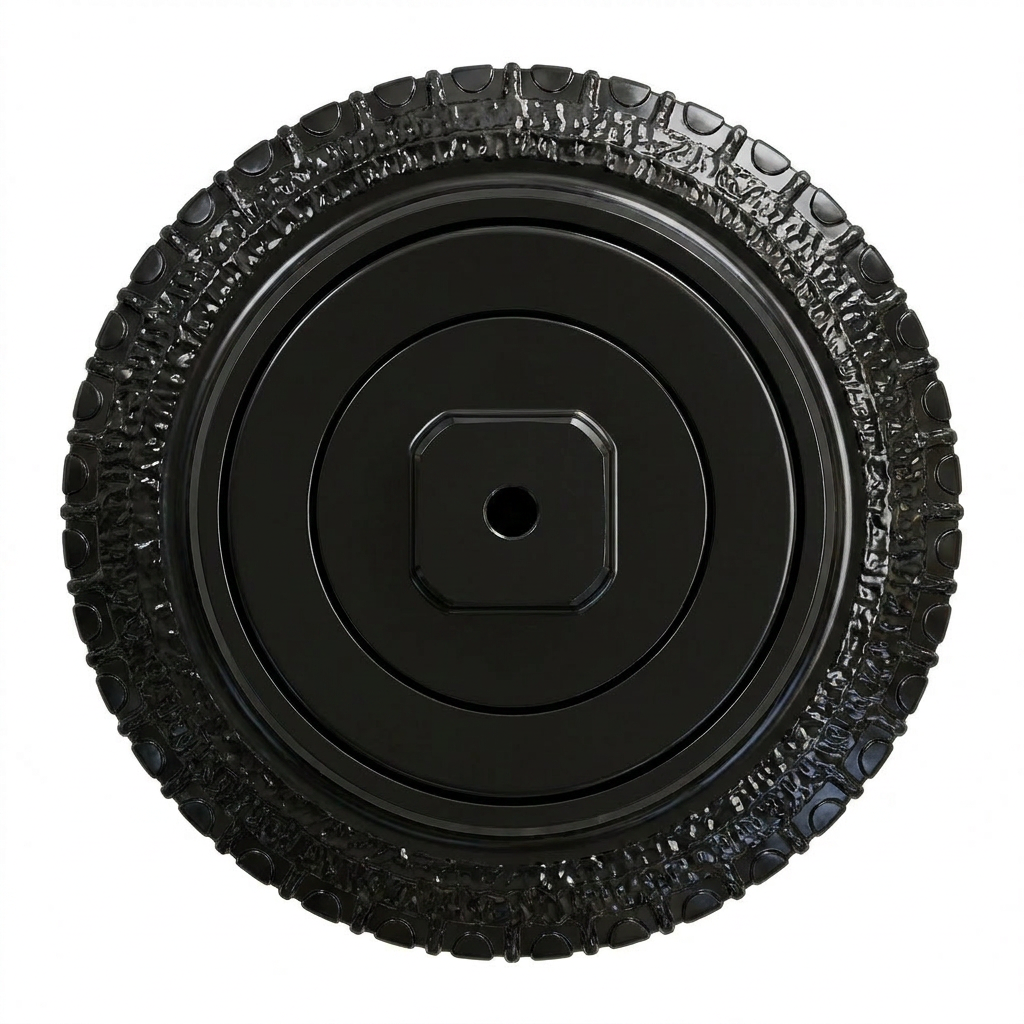

· Smooth or TCI cutter ring options

· Timken bearings available upon request

· Duo-cone sealing systems

· Dimensional matching based on customer drawings

· Complete cutters and replacement components available

· Technical review before production

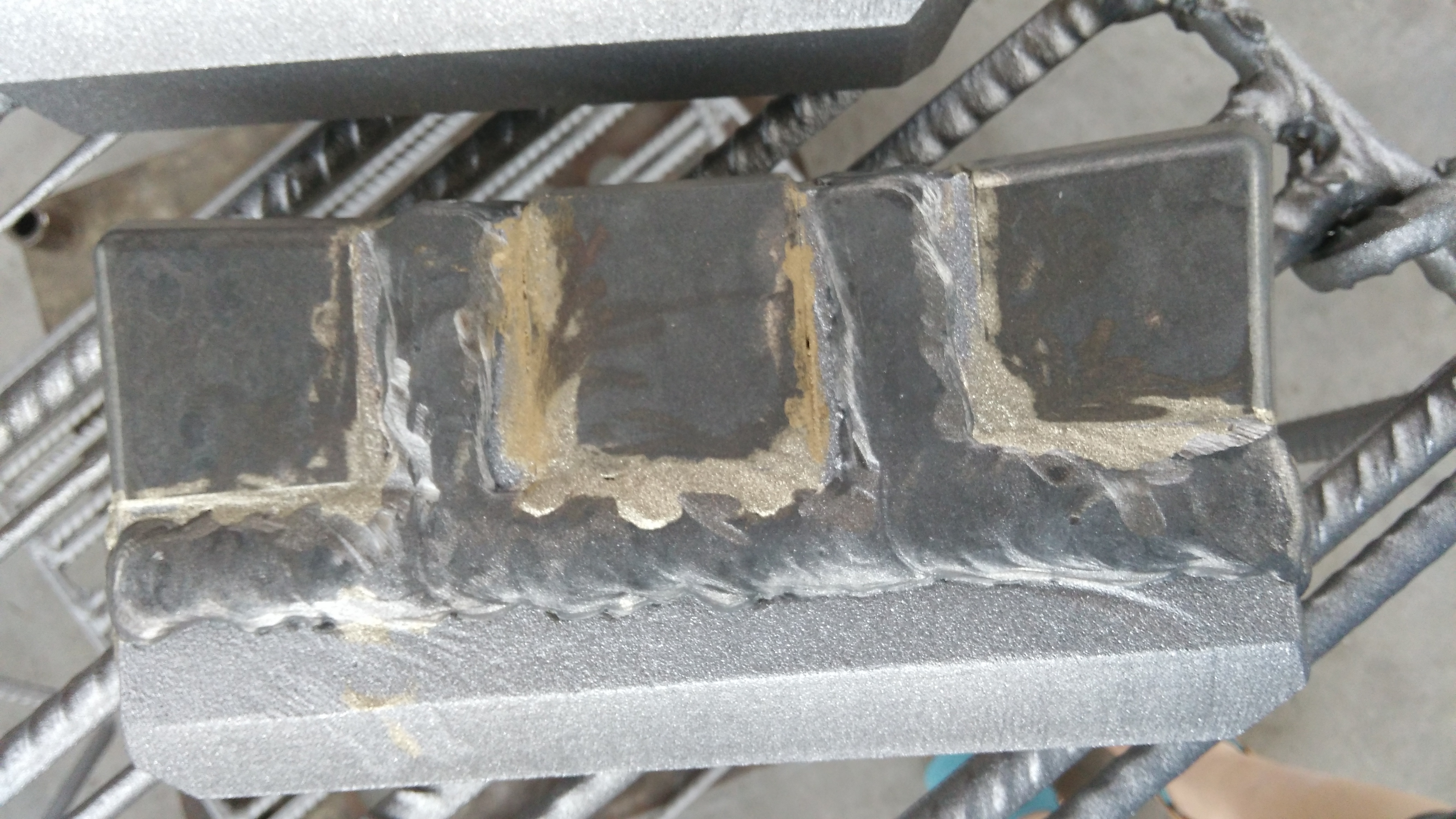

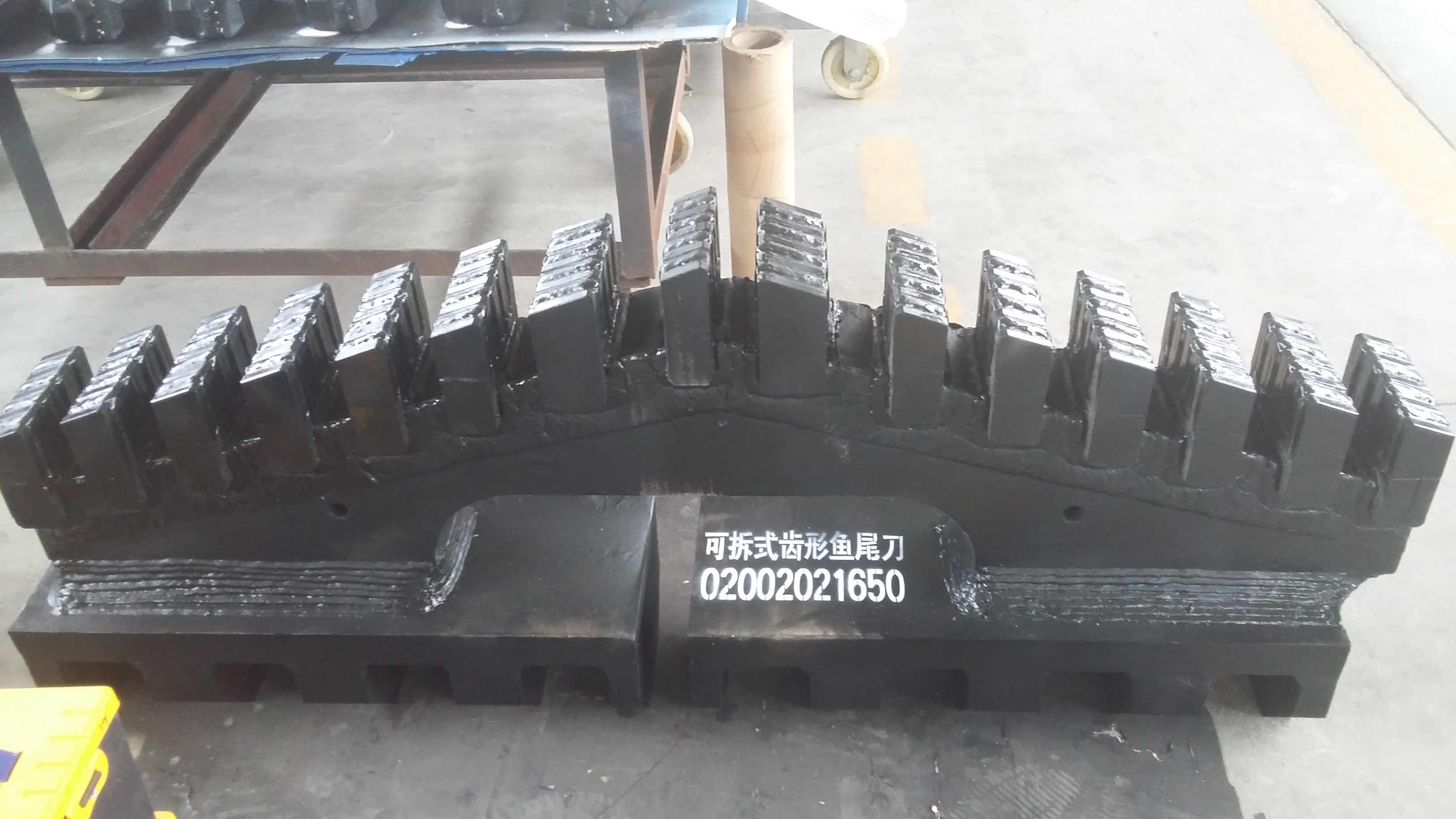

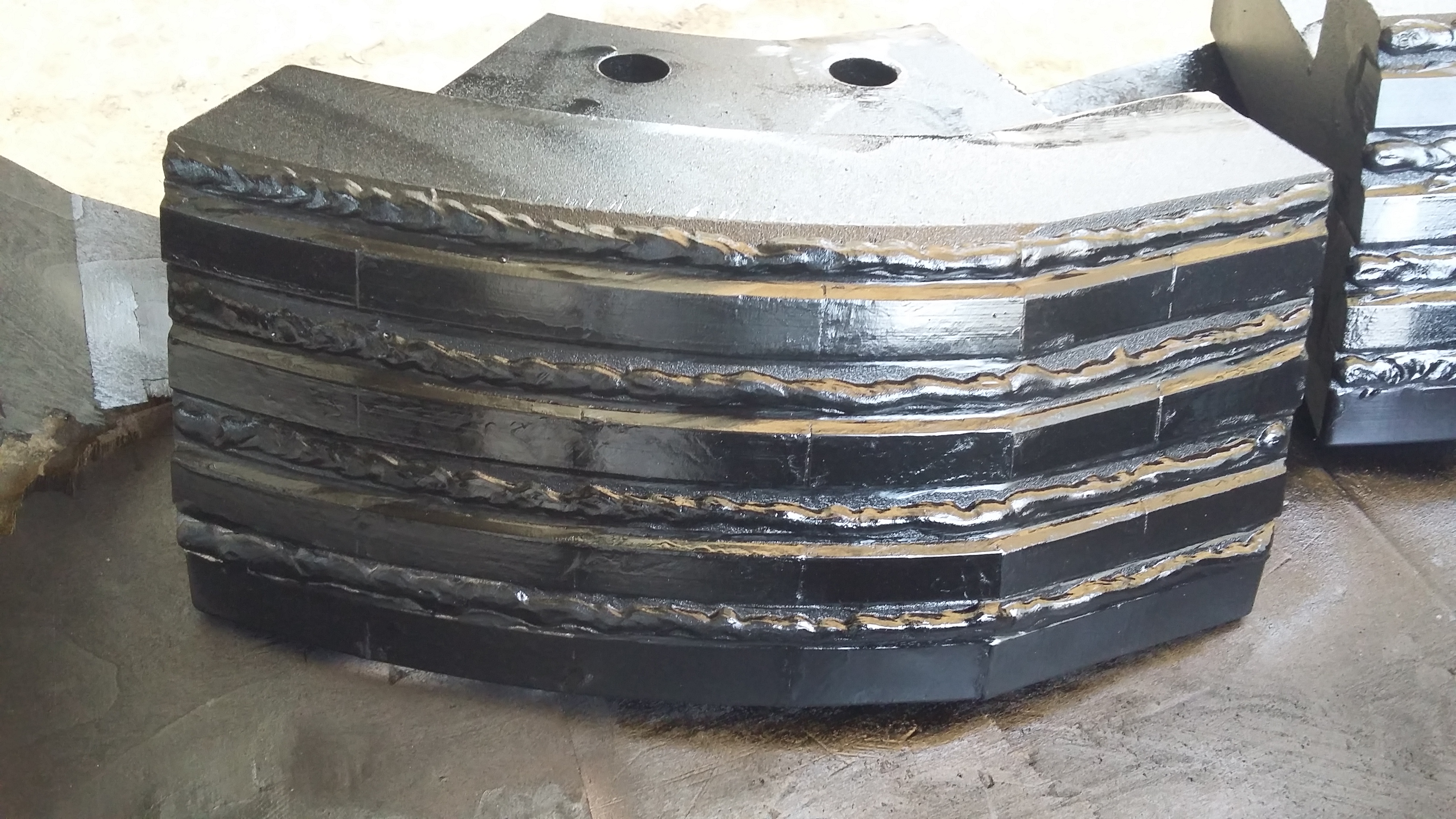

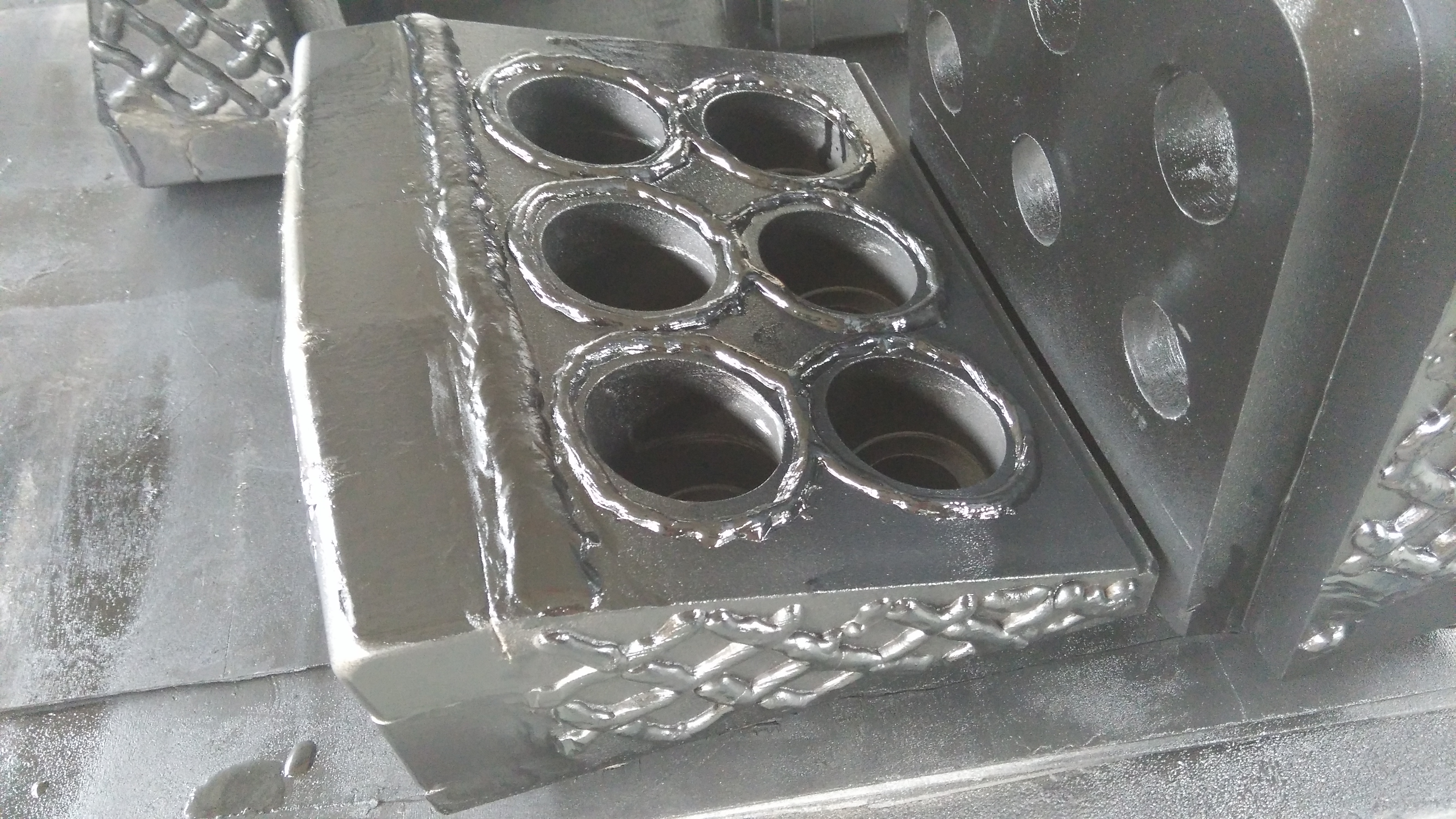

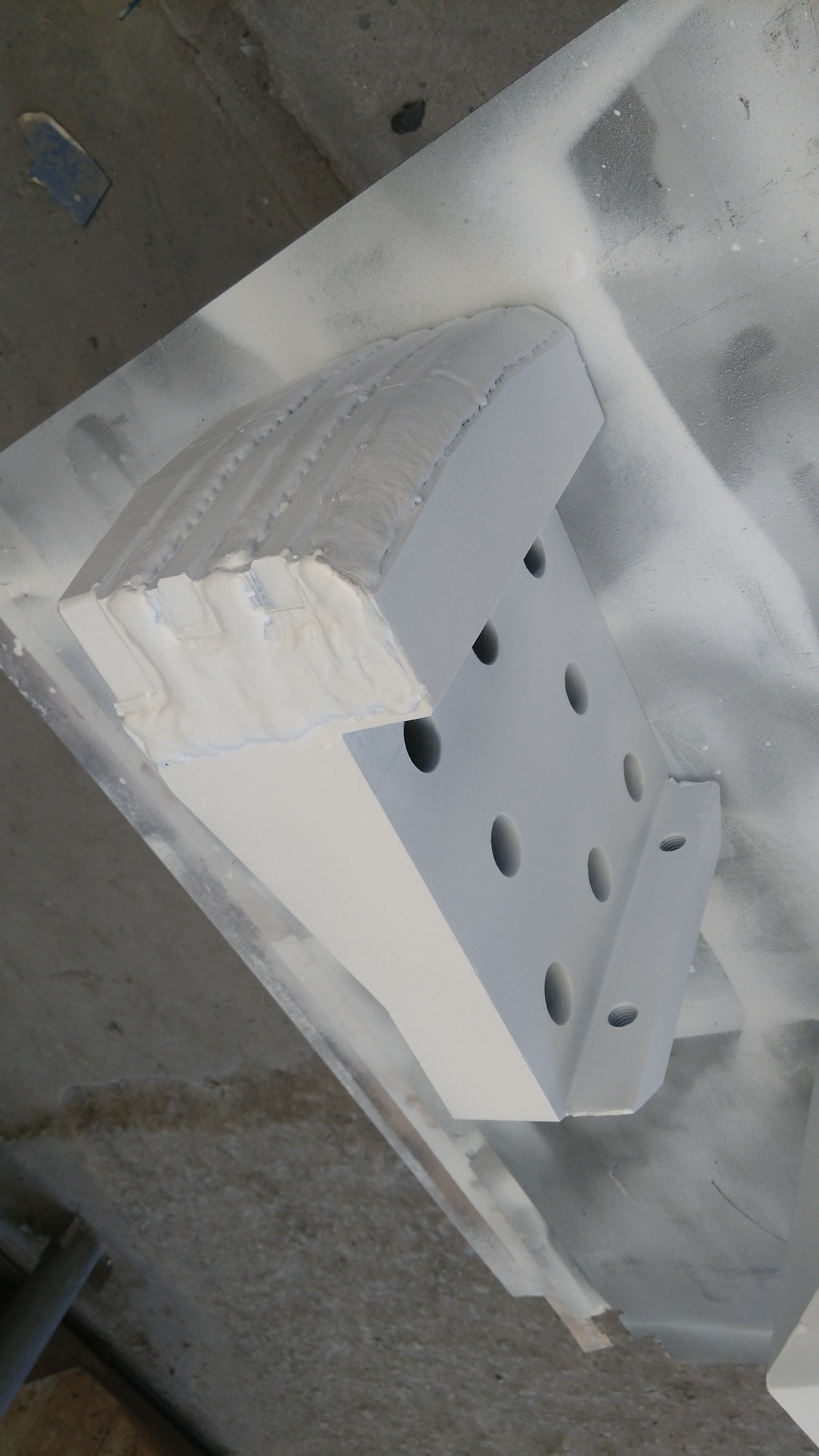

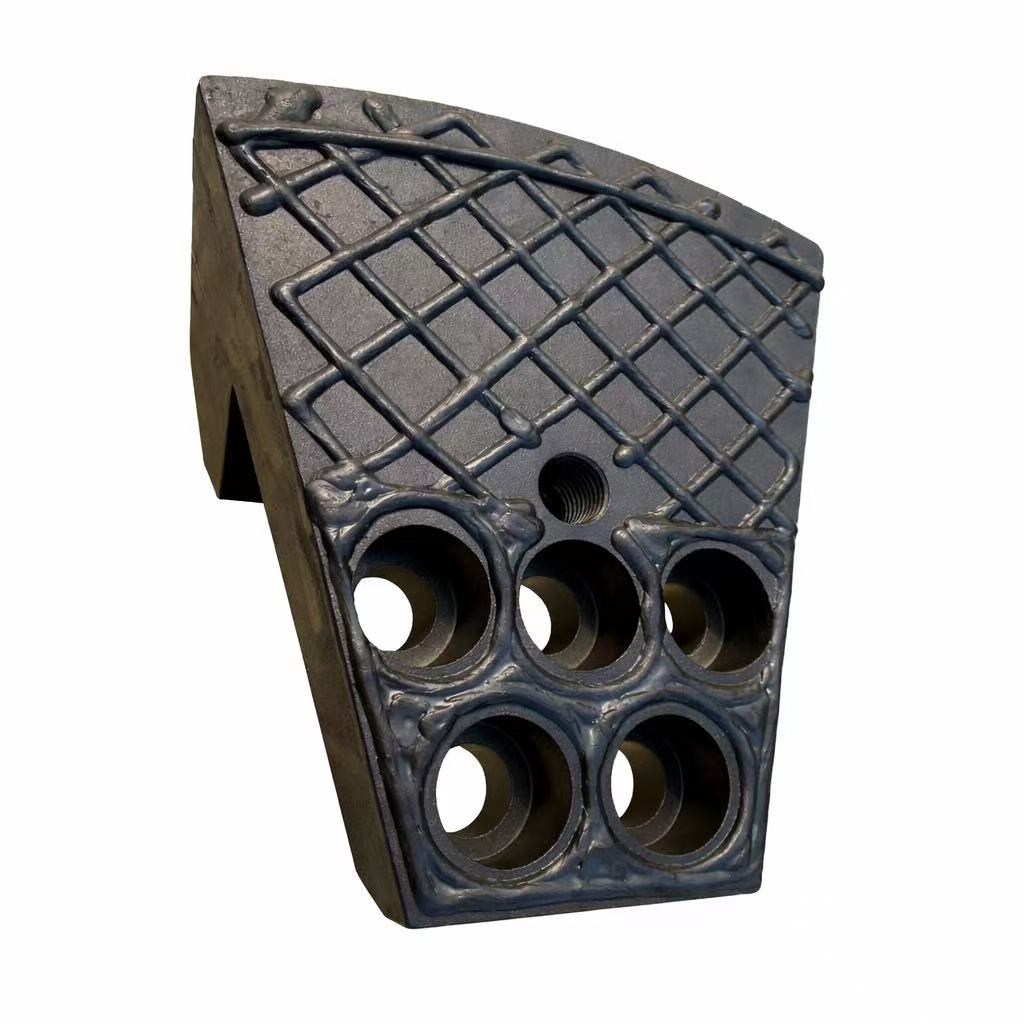

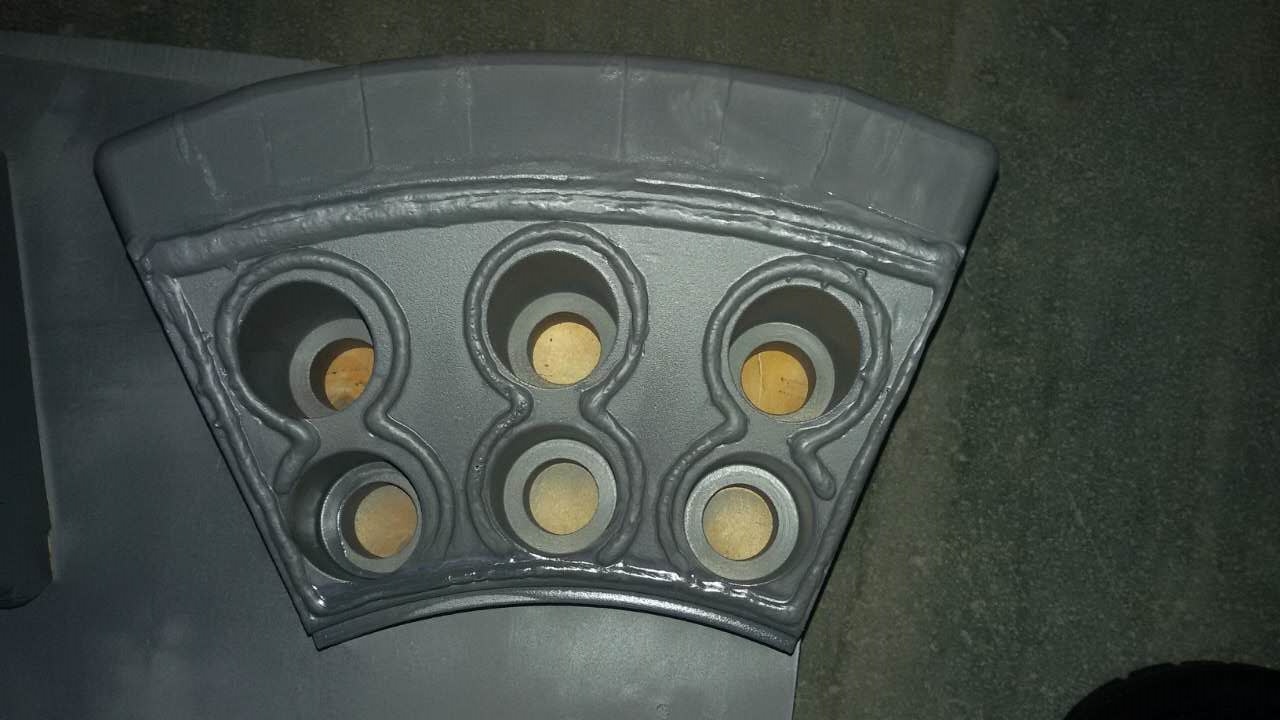

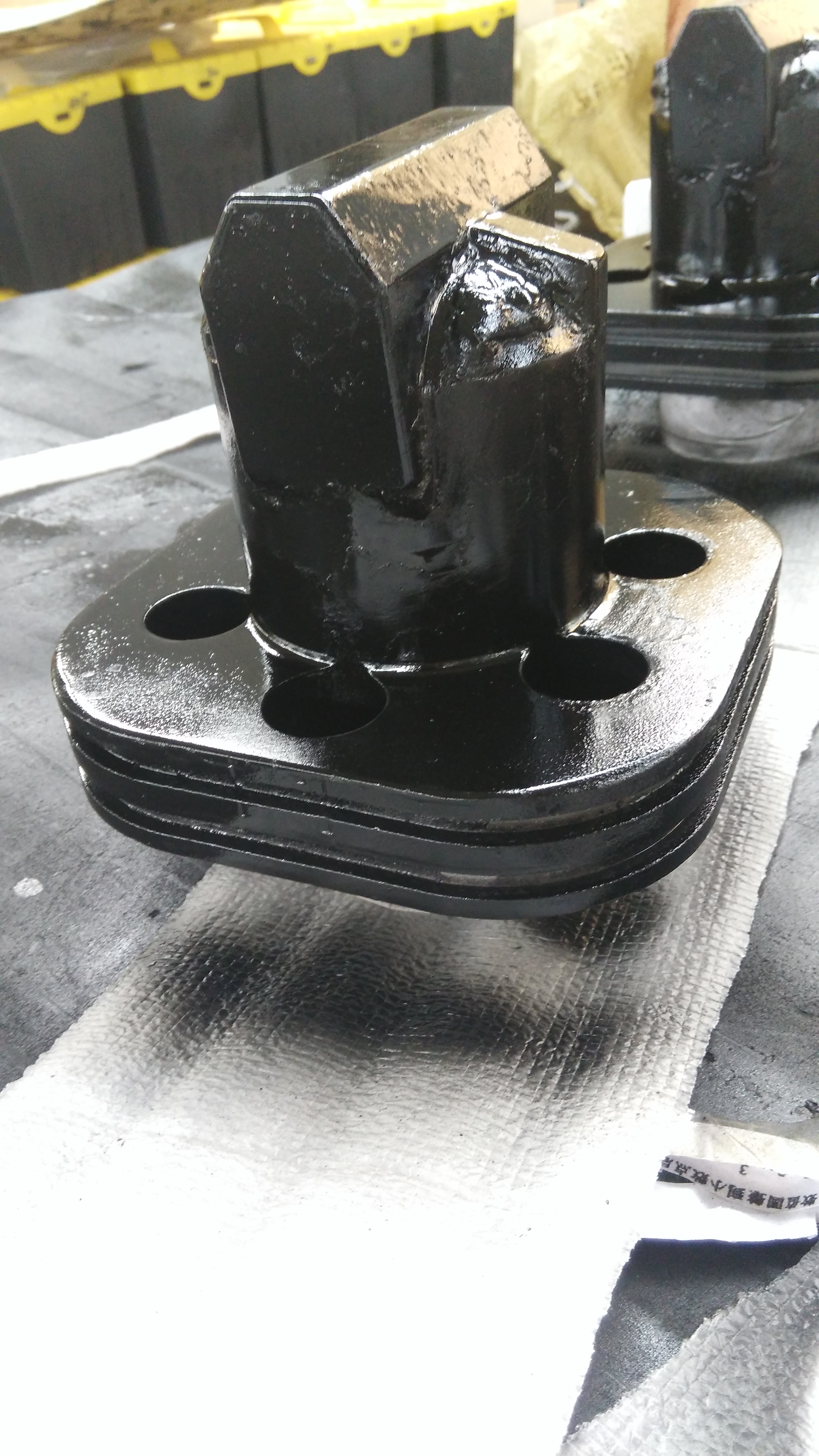

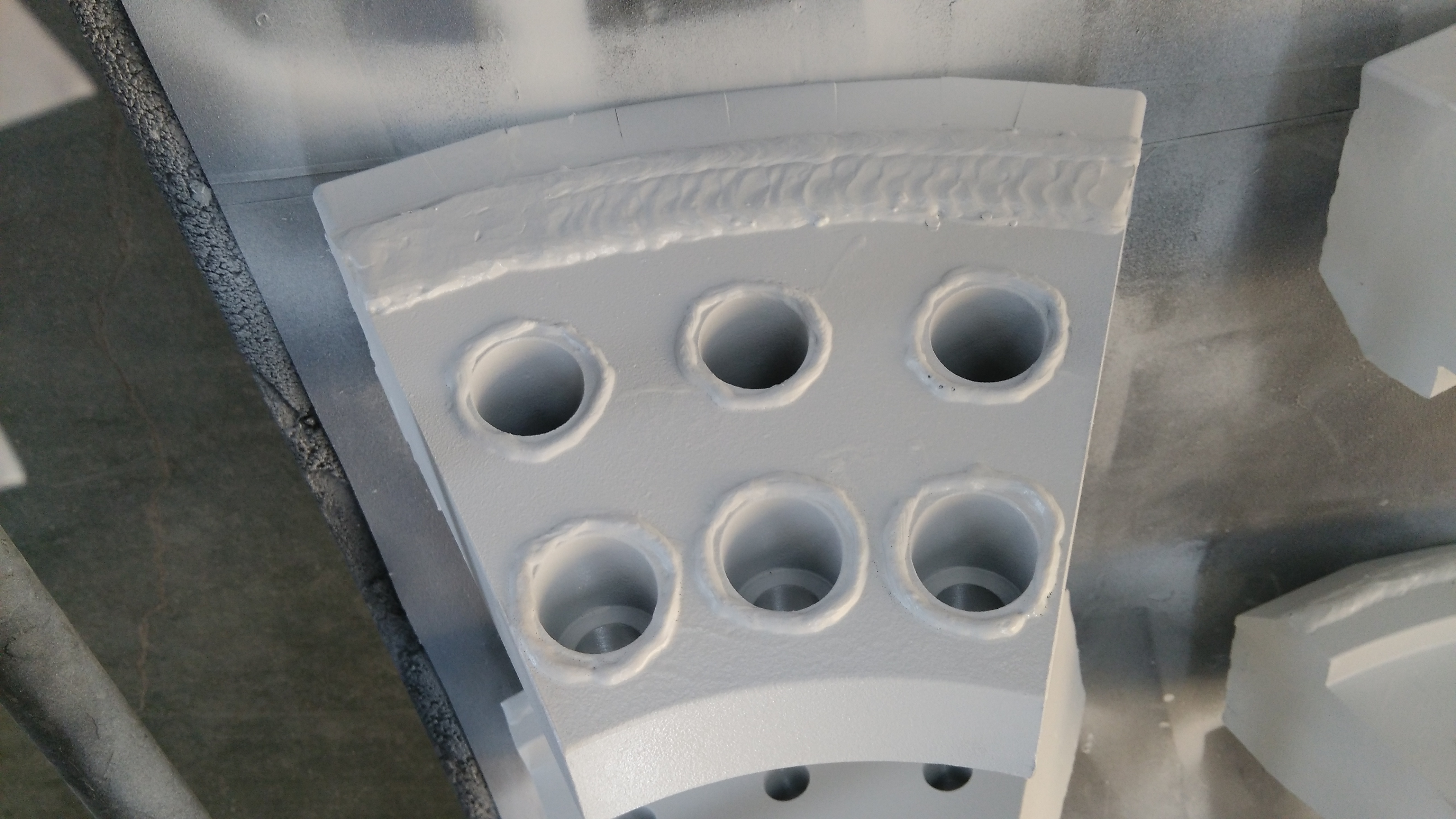

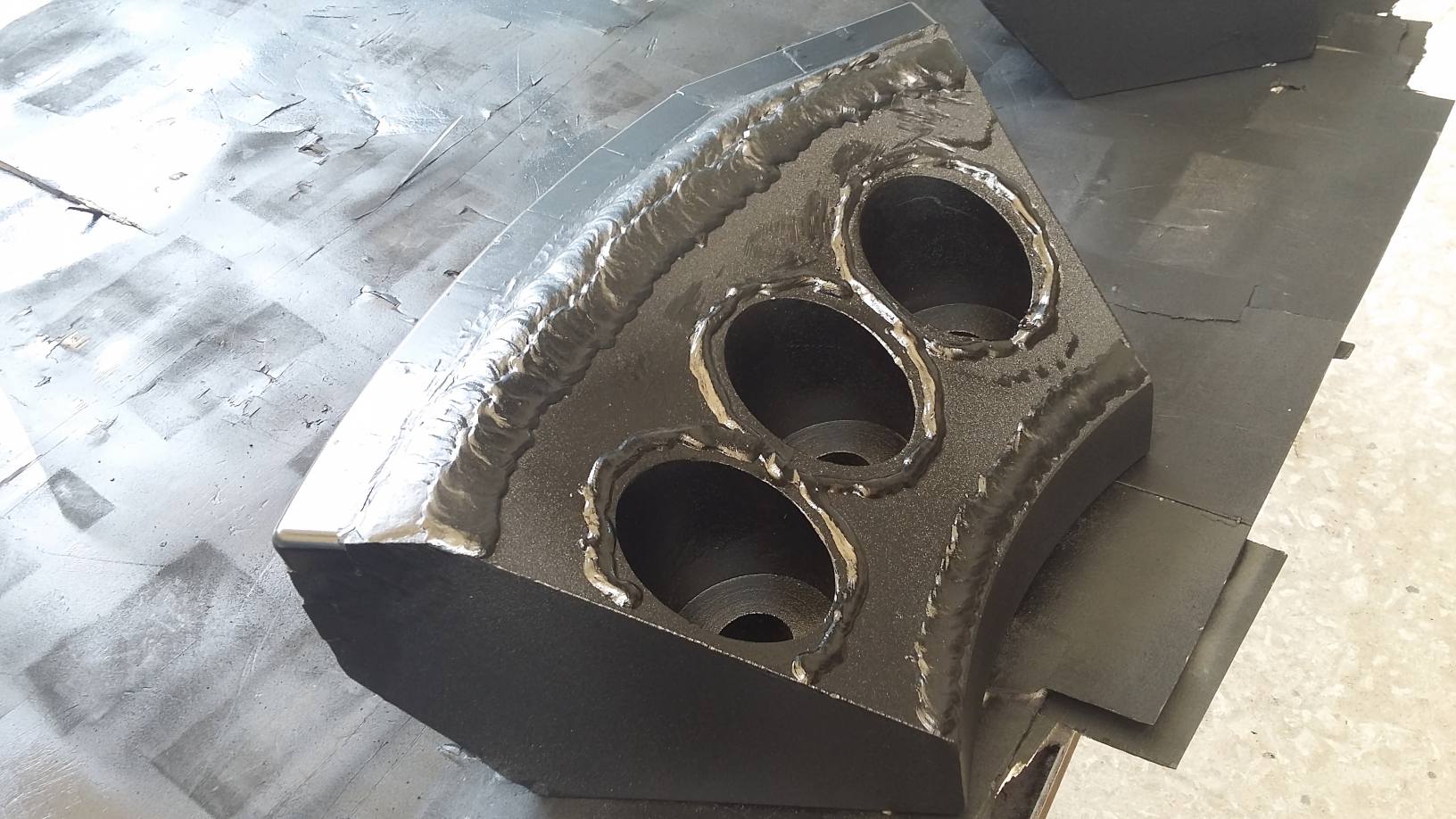

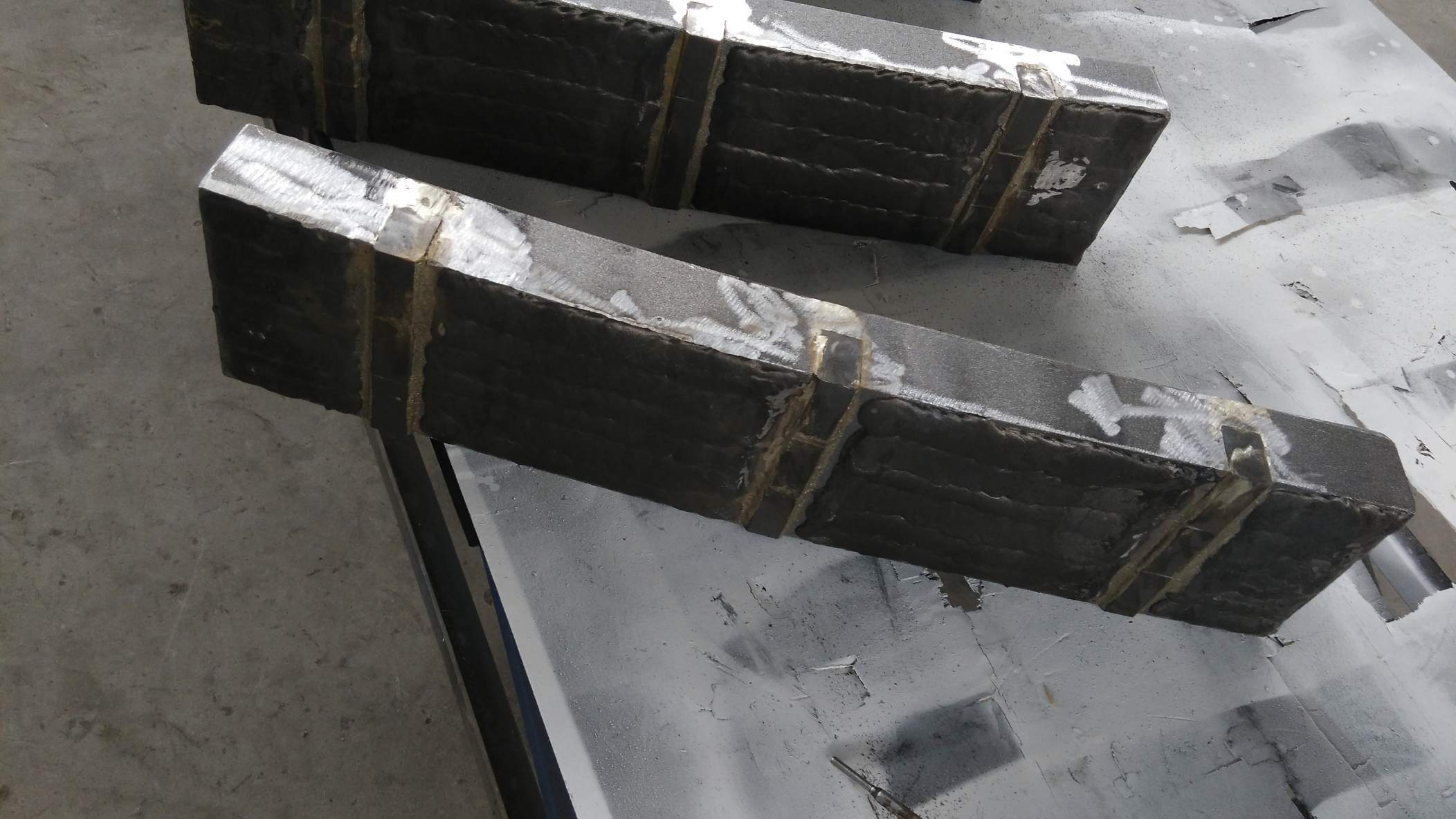

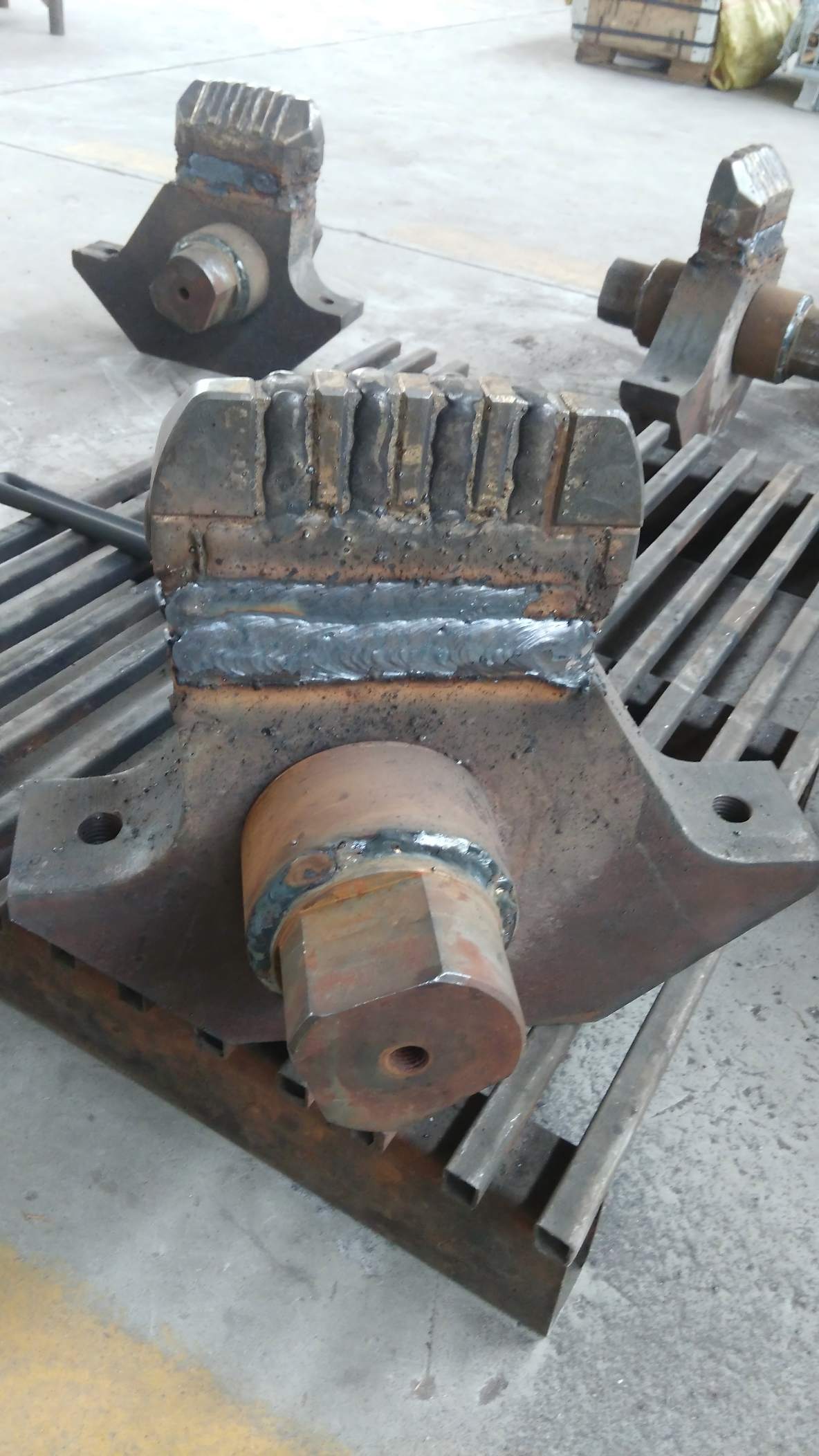

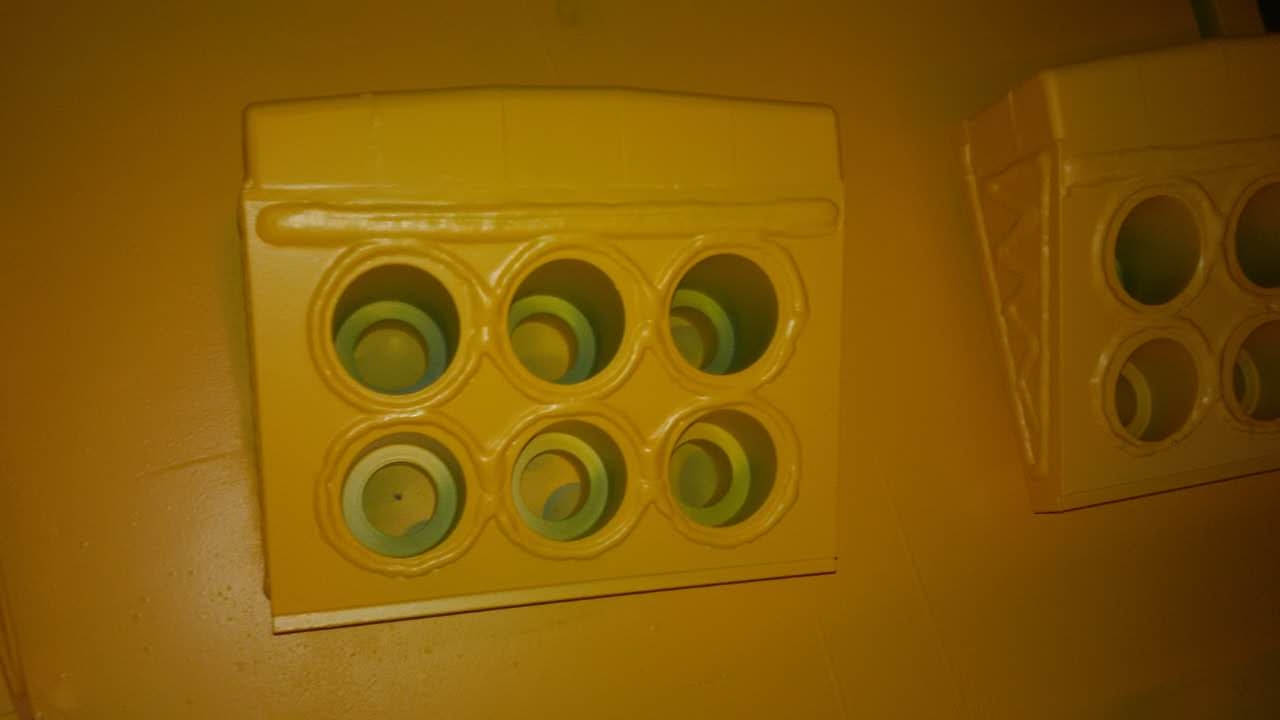

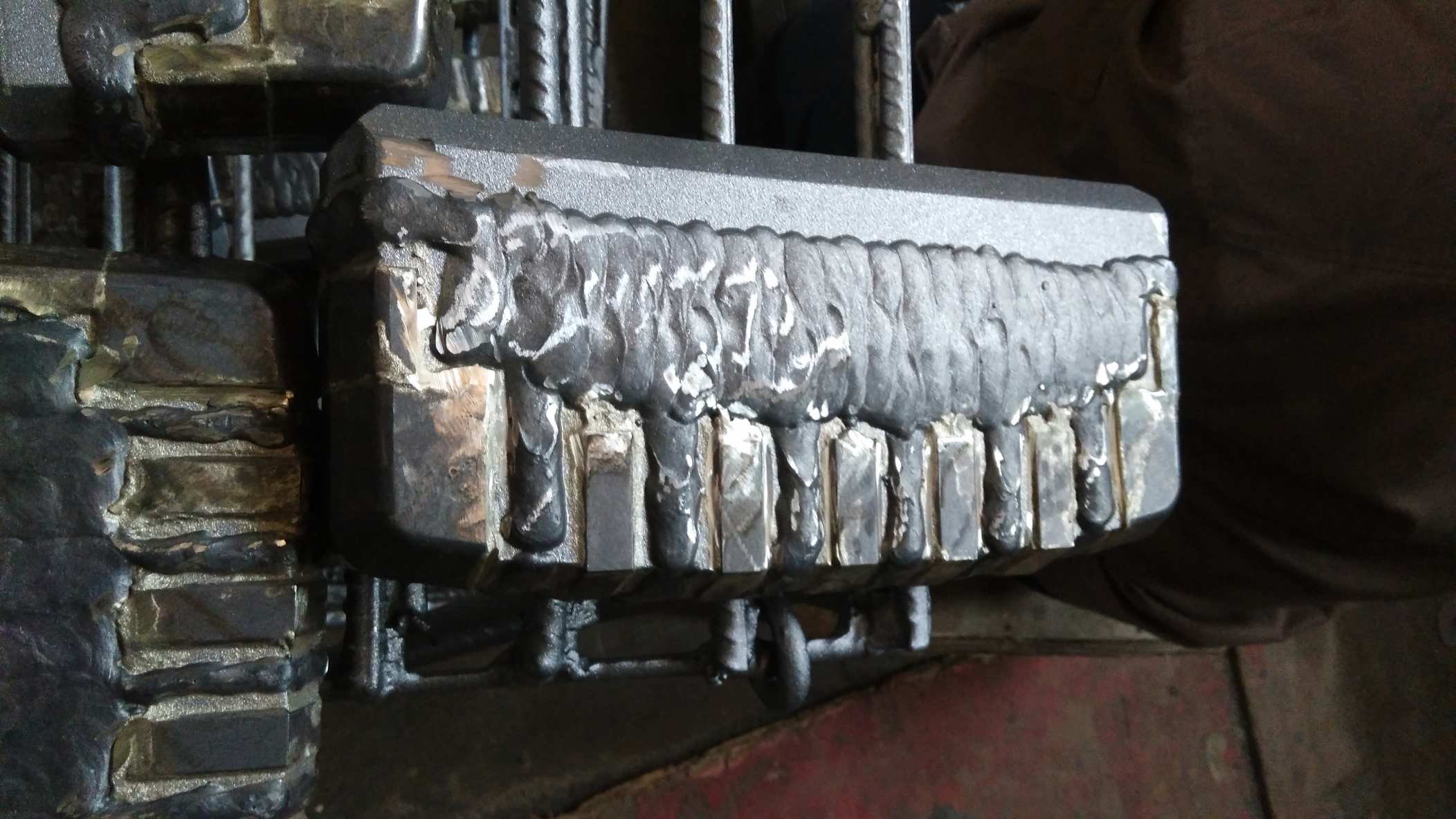

Soft-ground cutting tools are used on EPB and slurry TBM cutterheads for excavating soil, clay, sand, gravel and mixed-ground formations. Our product range includes TBM scrapers, ripper tools, center cutters and other replaceable cutterhead tools for cutting, scraping, loosening and center-area excavation. Tool materials, wear protection, mounting interfaces and installation dimensions can be customized according to customer drawings, cutterhead configurations and ground conditions. Existing tool samples or specifications can also be reviewed for dimensional matching and replacement supply.

Customization & Supply Capabilities

· Tool type and dimensions matched to customer drawings

· Material and hardfacing options selected according to ground conditions

· Customized mounting interfaces and installation dimensions

· Replacement tools supplied for existing cutterhead configurations

· Technical review before production

Information Required for Technical Confirmation

Please provide the TBM type, cutterhead information, required cutter type, installation dimensions, ground conditions, quantity, and any available drawings or existing tool specifications.
